Using Keycloak as an IdP

Follow the instructions below to use Keycloak as the Identity Provider (IdP) to authenticate the APIs that belong to a specific Organization:

Configure Keycloak

1. Sign in to the Keycloak Management Console.

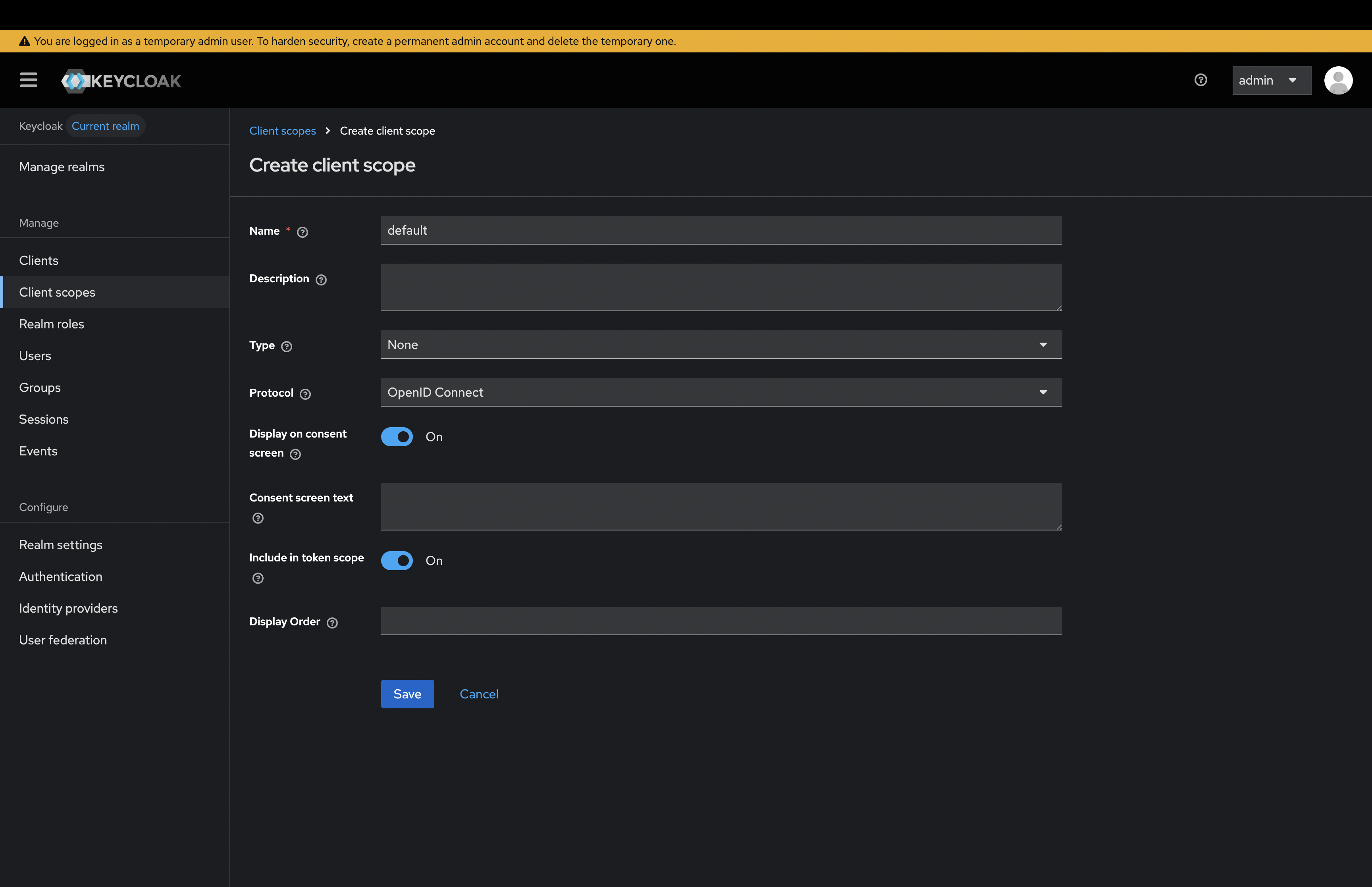

2. Click Client Scopes and create client scope named "default".

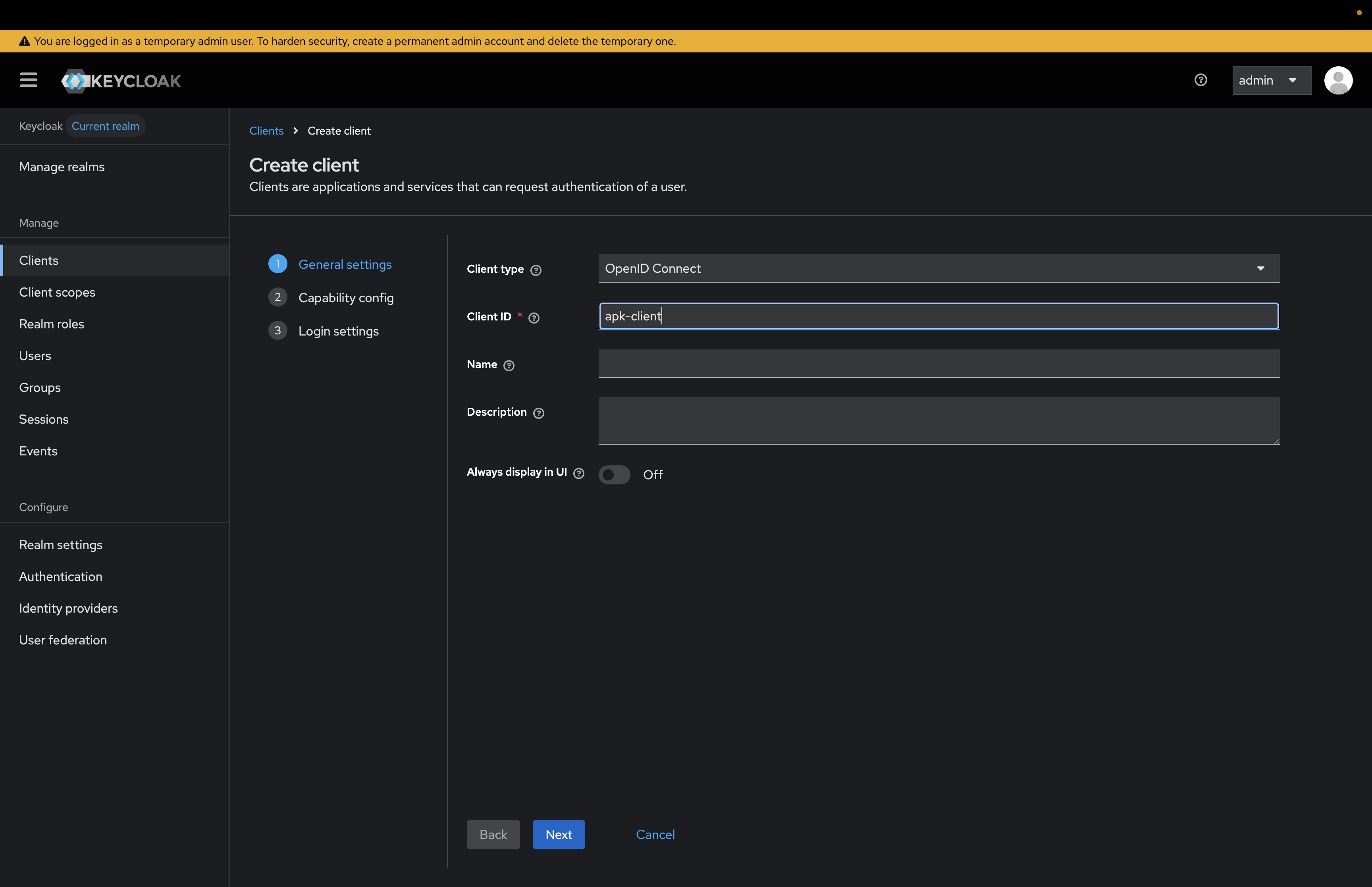

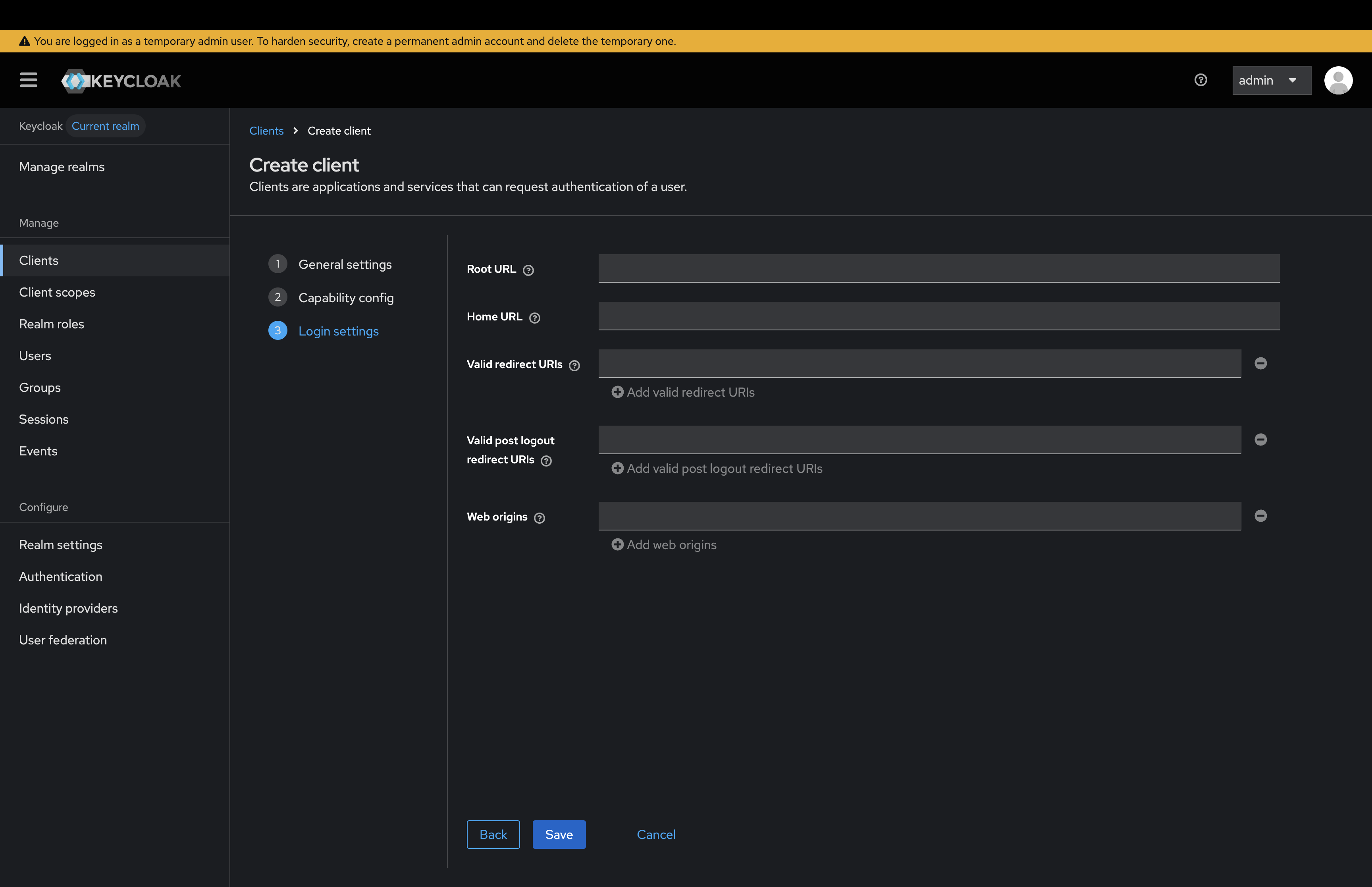

3. Click Clients and create client

   Add client id - In this scenario it is "apk-client"

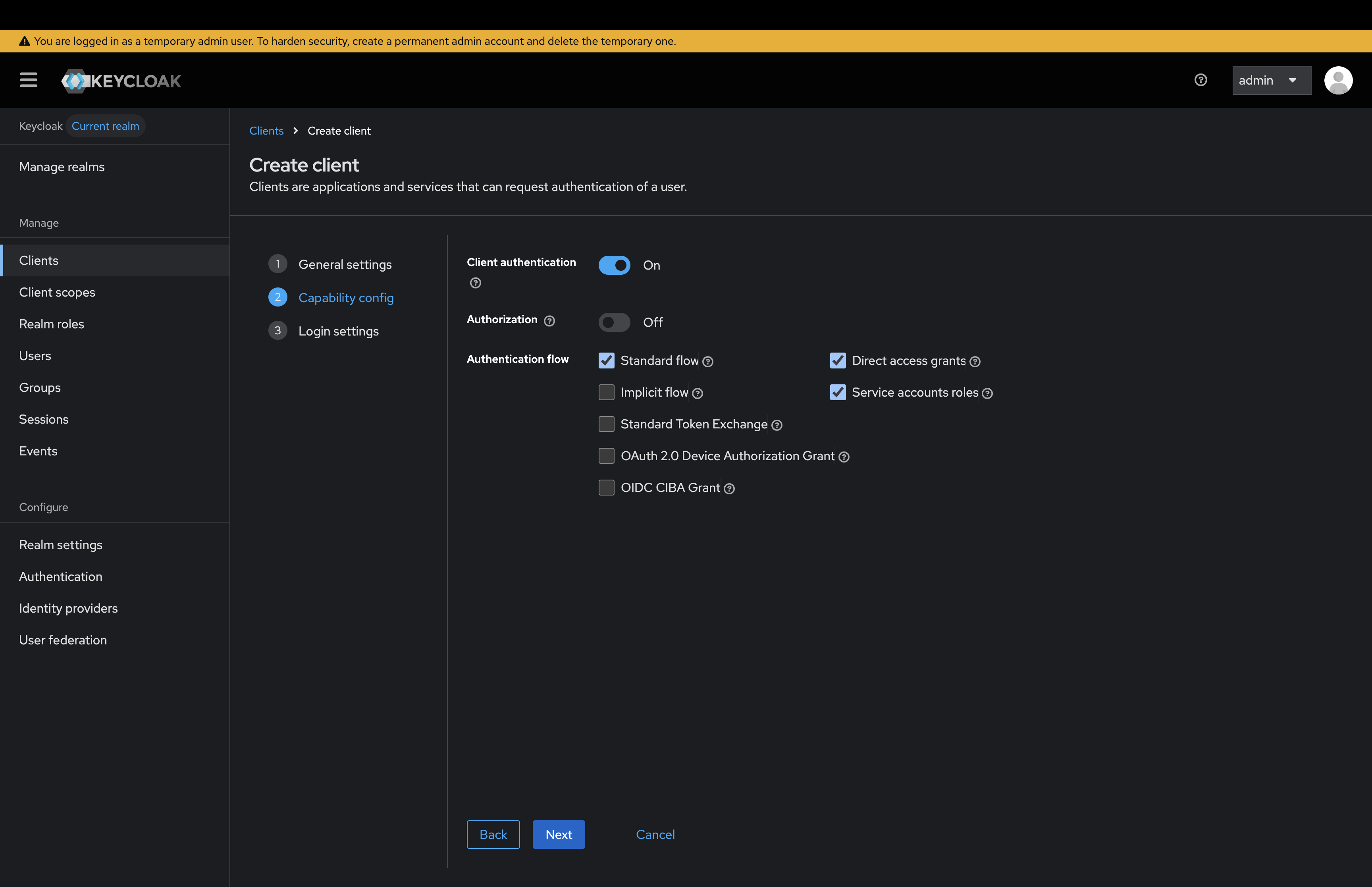

   Add capability config and enable client authentication



   Click Save

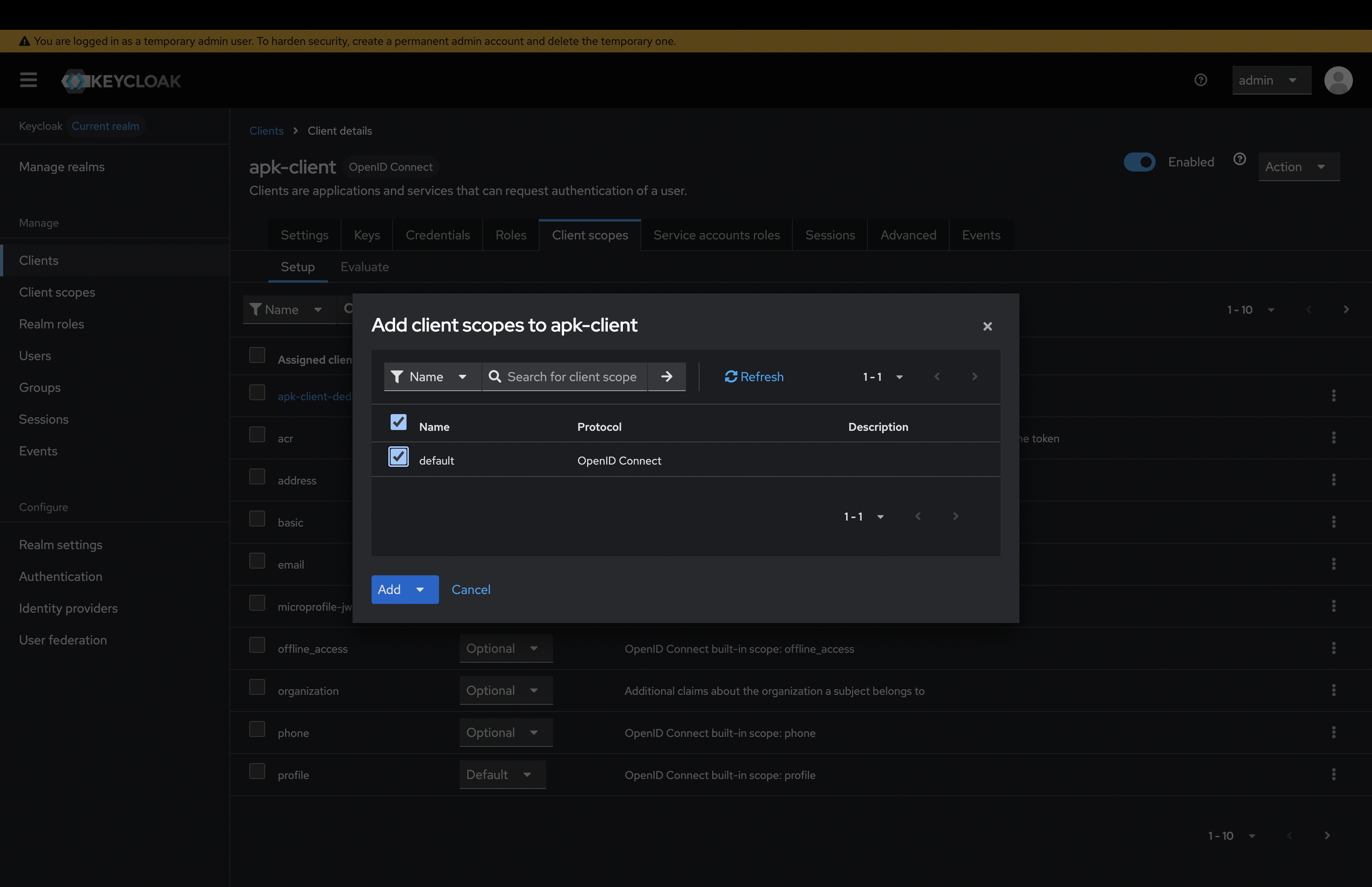

4. Click Client Scopes and add the default scope created previously to the client as default scope.

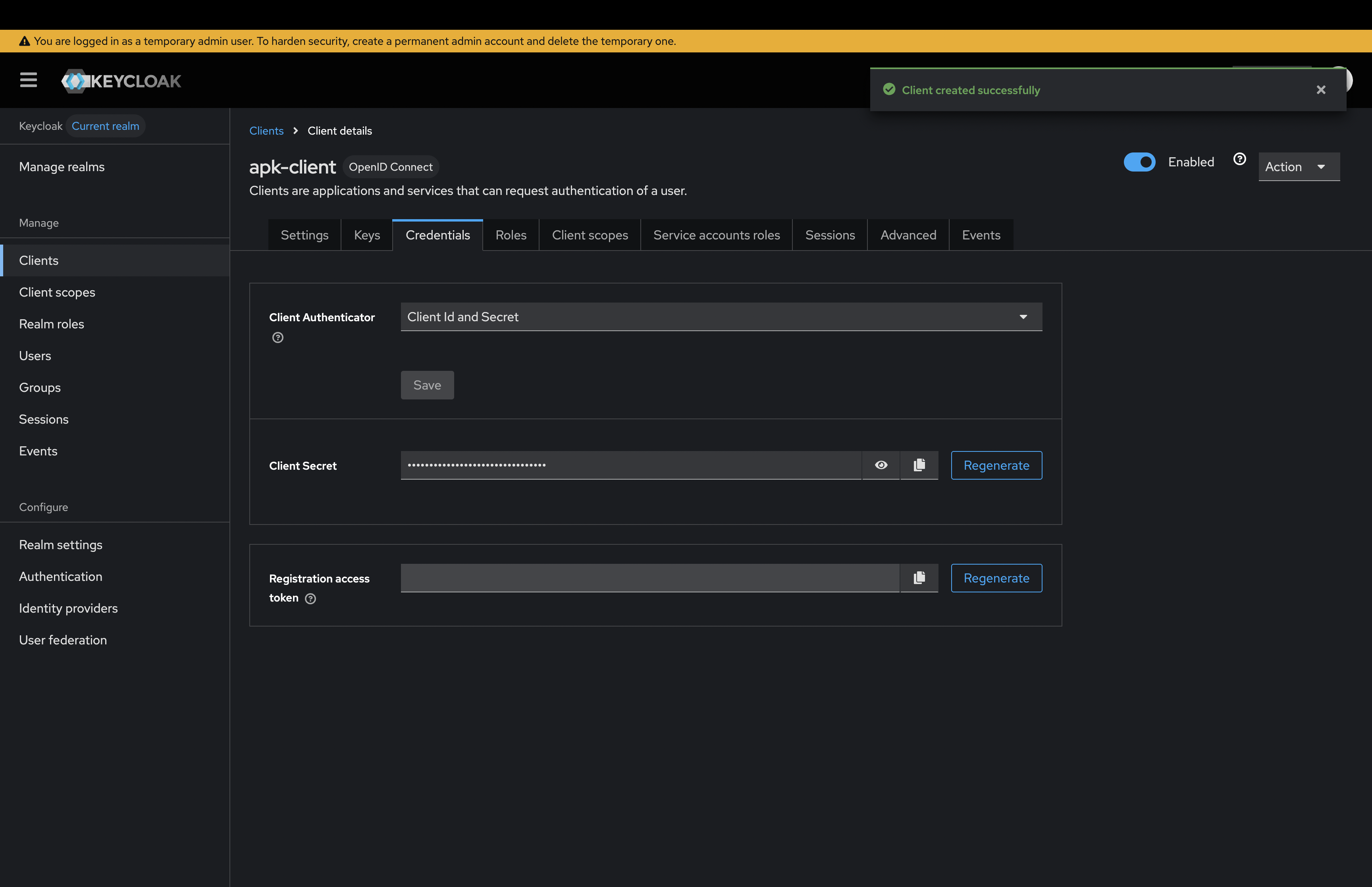

5. Click the created client and in Credential section you can get the client secret.



Configure Kubernetes Gateway

1. Add a keycloak token issuer. Create .yaml

   For Organization APIs

   apiVersion: dp.wso2.com/v1alpha2
   kind: TokenIssuer
   metadata:
     name: keyclock
     namespace: apk
   spec:
     claimMappings: []
     consumerKeyClaim: azp
     issuer: http://keycloak.default.svc.cluster.local:8080/realms/master
     name: KeyClock
     organization: carbon.super
     scopesClaim: scope
     signatureValidation:
       jwks:
         url: http://keycloak.default.svc.cluster.local:8080/realms/master/protocol/openid-connect/certs
     targetRef:
       group: gateway.networking.k8s.io
       kind: Gateway
       name: wso2-apk-default


   Parameter	Description
   issuer:	The IdP's issuer URL.
   jwksEndpoint:	The URL of the IdP's JSON Web Key Set (JWKS) endpoint.
   organization:	The organization of IDP.

2. Run the following commands to add the token Issuers to which Kubernetes Gateway deployed.

   kubectl apply -f <token-issuer>.yaml -n <namespace>


Generate Token with Client Credentials

ExampleFormat

curl -X POST http://keycloak.default.svc.cluster.local:8080/realms/master/protocol/openid-connect/token -d "client_id=apk-client" -d "client_secret=JZVw8AbO4HbyybDYqPErebBnnog2PRsy" -d "grant_type=client_credentials"

curl -X POST <keyclock_token_endpoint> -d "client_id=<client_id>" -d "client_secret=<client_secret>" -d "grant_type=client_credentials"

Then you can use this token to invoke the API that is deployed in the same organization, in this case, "carbon.super".
