Kubernetes Gateway and Control Plane both in Kubernetes

Overview

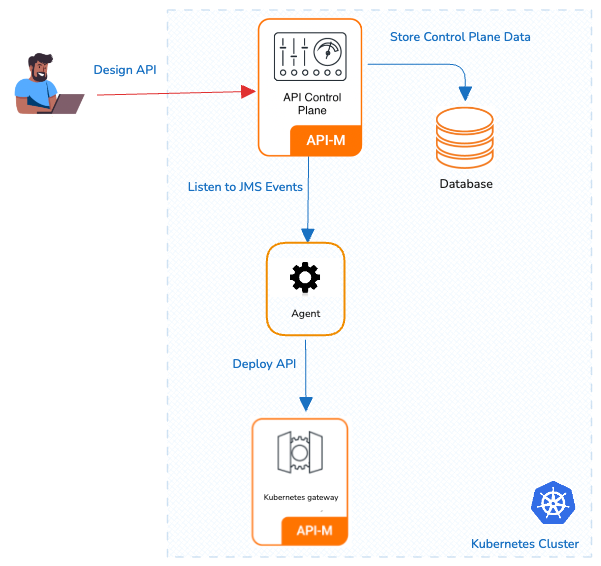

In this approach, both Kubernetes Gateway and APIM Control Plane are in a kubernetes cluster.

Advantages

• Resource Efficiency: This pattern maximizes resource utilization by allowing multiple components to coexist within the same cluster.
• Simplified Management: Managing a single cluster with multiple namespaces can be more straightforward compared to managing separate clusters.

Considerations

• Isolation: While namespaces provide a level of isolation, they may not offer the same level of isolation as separate clusters. Careful resource allocation and RBAC (Role-Based Access Control) policies are essential.
• APIM in K8s: Running APIM in a Kubernetes cluster may require additional resources and configurations compared to running it in a VM.

Installation guideline

Create Kubernetes namespace

In this guide, the APIM Control Plane and the Kubernetes Gateway are installed in the same namespace. If you prefer, you can use any standalone Kubernetes Gateway pattern to deploy the Kubernetes Gateway.

kubectl create ns apk

Setup WSO2 Kubernetes Gateway 1.3.0

1. Create a new helm repository with the latest Kubernetes Gateway release using the following command. Let’s consider the <repository-name> as wso2apk.

   helm repo add wso2apk https://github.com/wso2/apk/releases/download/1.3.0


2. Execute the following command to update the helm repositories.

   helm repo update


3. Download values.yaml File

   To obtain the values.yaml file, you can use the helm show values command. Replace <repository-name> with the actual repository name and <version-of-APK> with the desired version of the Kubernetes Gateway. Run the following command:

   CommandFormat

   helm show values wso2apk/apk-helm --version 1.3.0  > kg-values.yaml


   helm show values <repository-name>/apk-helm --version <version-of-APK> > kg-values.yaml


4. Configuration Require to add Kubernetes Gateway As a gateway in kg-values.yaml

   • Add following configuration under wso2.apk section

     cp:
         enabledSubscription: true
         host: "apim-apk-agent-service.apk.svc.cluster.local"
         skipSSLVerification: true


     enabledSubscription	This field require to be true for getting subscription details to the gateway level
     host	Agent hostname. {agentService}.{namespace}.svc.cluster.local You can get the agentService name by using kubectl get svc -n <namespace> At this point you dont have agent configured so you can keep default value as it is. Once you configure it make sure to change it here and do helm upgrade.
     skipSSLVerification	Skip SSL verification between Agent and Gateway

   • Change default Listner Host Names

     By default Kubernets Gateway have 2 listenrs

     • System APIs Listner - api.am.wso2.com
     • Gateway Listner - gw.wso2.com

     If you wish to change the default hostname and vhost, change the following values.yaml configurations. Lets say you want to deploy a production environment and you have a domain name example.com and you want to expose your API's through prod.gw.example.com and expose APK system APIs through prod.apk.example.com then

     wso2.apk.listener.hostname: 'prod.apk.example.com'
     wso2.apk.dp.gateway.listener.hostname: 'gw.example.com'
     wso2.apk.dp.configdeployer.vhosts: [{"hosts":["gw.example.com"],"name":"prod","type":"production"}]


5. Install Helm Chart To begin the installation, run the following command.

   CommandFormat

   helm install apk wso2apk/apk-helm --version 1.3.0 -f kg-values.yaml


   helm install <chart-name> <repository-name>/apk-helm --version <version-of-APK> -f <path-to-values.yaml-file>


Setup WSO2 API Manager Control Plane 4.5.0

Setup WSO2 API Manager 4.5.0 in K8s cluster using Helm Charts.

Important

If you need comprehensive documentation and configurations for API Manager Helm Chart Please refer APIM Helm Here we focus on single deployment with API Manager Control Plane

1. Create a new helm repository with the latest apim release using the following command. Let’s consider the <repository-name> as wso2apim.

   helm repo add wso2 https://helm.wso2.com


2. Execute the following command to update the helm repositories.

   helm repo update


3. Download values.yaml and Rename it to apim-values.yaml

4. Configuration Require to add Kubernetes Gateway As a gateway in apim-values.yaml

   Configure supported gateway types in API Manager.

   BothAPK Only

       Configurations:
           gatewayType: "Regular,APK"


       Configurations:
           gatewayType: "APK"


   Add kubernetes gateway environment to the Environment list.

   gateway:
   # -- Kubernetes Gateway environments
       environments:
       - name: "Default_APK"
         type: "hybrid"
         gatewayType: "APK"
         provider: "wso2"
         displayInApiConsole: true
         description: "This is a kubernetes gateway that handles both production and sandbox token traffic."
         showAsTokenEndpointUrl: true
         httpHostname: "default.gw.wso2.com:9095"


   name	Gateway Name. This name is require to later part to configre Kubernetes gateway agent
   type	To handles both production and sandbox token traffic keep it as hybrid
   gatewayType	To identify as Kubernetes gateway. Type require to keep as APK
   provider	Gateway Provider
   httpHostname	This setting is critical. In the Control Plane to locate the Gateway listener. If you change the Gateway listener in Kubernetes Gateway configuration that should be added to here. The Gateway listener hostname must be configured as default.{gateway.listener.hostname}:9095, where default and 9095 are fixed values.

5. Consider apim as the <chart-name> for this guide. As the --version of this command, use the version of the release you used in point 1 above. It will take a few minutes for the deployment to complete.

   CommandFormat

   helm install apim wso2/wso2am-all-in-one --version 4.5.0-1 -f https://raw.githubusercontent.com/wso2/helm-apim/main/docs/am-pattern-0-all-in-one/default_values.yaml -n apk


   helm install <chart-name> <repository-name>/wso2am-cp --version <version-of-APIM> -f <path-to-values.yaml-file>


6. Install NGINX Ingress Controller. Please refer to the NGINX Ingress Controller documentation for more information.

Setup WSO2 Kubernetes Gateway Agent 1.3.0

Note

Kubernetes Gateway Agent Provide a connection between APIM Control Plane and Kubernetes Gateway.

1. Create a new helm repository with the latest kubernetes gateway agent release using the following command. Let’s consider the <repository-name> as wso2apkagent for this guide.

   helm repo add wso2apkagent https://github.com/wso2/product-apim-tooling/releases/download/1.3.0


2. Execute the following command to update the helm repositories.

   helm repo update


3. Download values.yaml File

   To obtain the values.yaml file, you can use the helm show values command. Replace <repository-name> with the actual repository name and <version-of-Agent> with the desired version of the Kubernetes Gateway Agent. Run the following command:

   CommandFormat

   helm show values wso2apkagent/apim-apk-agent --version 1.3.0  > kg-agent-values.yaml


   helm show values <repository-name>/apk-helm --version <version-of-APK> > kg-agent-values.yaml


4. Configuration Require to Connect Kubernetes Gateway Agent in kg-agent-values.yaml

   • Configure Control Plane(APIM) related configuration in Kubernetes Gateway Agent

     controlPlane:
         enabled: true
         serviceURL: https://apim-wso2am-cp-1-service.apk.svc.cluster.local:9443/
         username: admin
         password: admin
         environmentLabels: Default
         skipSSLVerification: true
         eventListeningEndpoints: amqp://admin:[email protected]:5672?retries='10'&connectdelay='30'


     serviceURL	Service URL of the API Manager Control Plane {apimService}.{namespace}.svc.cluster.local You can get the apimService name by using kubectl get svc -n <namespace>
     environmentLabels	Gateway environment labels is Environment Name that you define under the environments section in the API Manager values yaml which sets up the Kubernetes gateway. In this scenario its Default_APK
     eventListeningEndpoints	Event Listening Endpoint in the API Manager
     Username and Password	Admin credentials of the API Manager

   • Configure Dataplane (APK Gateway) related configuration in Kubernetes Gateway Agent

     dataPlane:
         enabled: true
         k8ResourceEndpoint: https://apk-wso2-apk-config-ds-service.apk.svc.cluster.local:9443/api/configurator/apis/generate-k8s-resources
         namespace: apk


     k8ResourceEndpoint	Config deployer service endpoint {configDepolyService}.{namespace}.svc.cluster.local:{port}/api/configurator/apis/ You can get the configDepolyService name by using kubectl get svc -n <namespace>
     namespace	Namespace where Kubernetes Gateway is deployed

   • Change the mode of the agent configuration as shown below.

     agent:
         mode: CPtoDP


5. Install the Kubernetes Gateway Agent components and start WSO2 API Platform For Kubernetes. Consider apk as the <chart-name> for this guide. As the --version of this command, use the version of the release you used in point 1 above. It will take a few minutes for the deployment to complete.

   CommandFormat

   helm install apim-apk-agent wso2apkagent/apim-apk-agent --version 1.3.0 -f kg-agent-values.yaml -n apk


   helm install <chart-name> <repository-name>/apim-apk-agent --version <version-of-APK-Agent> -f <path-to-values.yaml-file>


Verify the deployment

Now you can verify the deployment by executing the following command. You will see the status of the pods as follows once completed.

Command

kubectl get pods -n apk

Configure the hosts file

Command

kubectl get svc -n apk

Command

kubectl get ing -n apk

Add a hostname mapping to the /etc/hosts file as follows.

Domain name	IP
am.wso2.com (APIM Control Plane ingress host name)	135.171.24.117 (As per above image). You can find it by using kubectl get ing -n <namespace>
default.gw.wso2.com(Value you change in Gateway listner should be added here)	135.171.24.26(As per above image). You can find it by using kubectl get svc -n <namespace>
api.am.wso2.com (Value you change in System APIs Listner should be added here)	135.171.24.26(As per above image). You can find it by using kubectl get svc -n <namespace>
idp.am.wso2.com(You dont need to change this)	135.171.24.26(As per above image). You can find it by using kubectl get svc -n <namespace>

Login to the Publisher Console (https://am.wso2.com/publisher) of the WSO2 API Manager.
