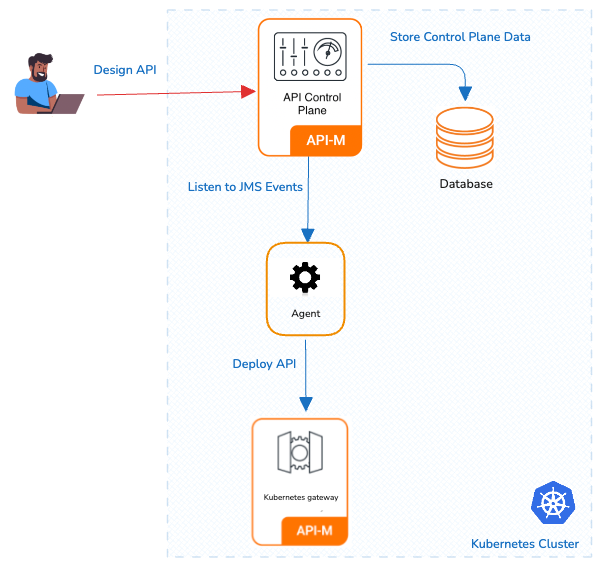

In this approach, both Kubernetes Gateway and APIM Control Plane are in a Kubernetes cluster.

apk_cp_to_dp

Advantages

  • Resource Efficiency: This pattern maximizes resource utilization by allowing multiple components to coexist within the same cluster.
  • Simplified Management: Managing a single cluster with multiple namespaces can be more straightforward compared to managing separate clusters.

Considerations

  • Isolation: While namespaces provide a level of isolation, they may not offer the same level of isolation as separate clusters. Careful resource allocation and RBAC (Role-Based Access Control) policies are essential.
  • APIM in K8s: Running APIM in a Kubernetes cluster may require additional resources and configurations compared to running it in a VM.

Installation guideline

Create Kubernetes namespace

In this guide, the APIM Control Plane and the Kubernetes Gateway are installed in the same namespace. If you prefer, you can use any standalone Kubernetes Gateway pattern to deploy the Kubernetes Gateway.

kubectl create ns apk

Set up WSO2 Kubernetes Gateway 1.3.0

  1. Create a new Helm repository with the latest Kubernetes Gateway release using the following command. Let's consider the <repository-name> as wso2apk.

    console helm repo add wso2apk https://github.com/wso2/apk/releases/download/1.3.0-1

  2. Execute the following command to update the helm repositories.

    console helm repo update

  3. Download values.yaml File

    To obtain the values.yaml file, you can use the helm show values command. Replace <repository-name> with the actual repository name and <version-of-APK> with the desired version of the Kubernetes Gateway. Run the following command:

    helm show values wso2apk/apk-helm --version 1.3.0-1 > kg-values.yaml

    helm show values <repository-name>/apk-helm --version <version-of-APK> > kg-values.yaml

  4. To add Kubernetes Gateway as a gateway, add the following configurations to the kg-values.yaml file downloaded in the previous step.

    • Add the following configuration under the wso2.apk section

      yaml cp: enabledSubscription: true host: "apim-apk-agent-service.apk.svc.cluster.local" skipSSLVerification: true

      Parameter Description
      enabledSubscription This field must be set to true to retrieve subscription details at the gateway level.
      host Agent hostname.

      Format: {agentService}.{namespace}.svc.cluster.local

      You can get the agentService name by using kubectl get svc -n <namespace>

      At this point, the agent is not configured so you do not need to change the default values. Once configured, make sure to change it here and do helm upgrade.
      skipSSLVerification Skip SSL verification between the Agent and Gateway.

    • Change the default listener hostnames.

      By default, the Kubernetes Gateway has two listeners:

      • System APIs Listener - api.am.wso2.com
      • Gateway Listener - gw.wso2.com

      If you wish to change the default hostname and vhost, modify the following values.yaml configurations. For example, if you want to deploy a production environment with the domain name example.com, expose your APIs through prod.gw.example.com, and expose system APIs through prod.apk.example.com, use the following:

      wso2.apk.listener.hostname: 'prod.apk.example.com'
wso2.apk.dp.gateway.listener.hostname: 'gw.example.com'
wso2.apk.dp.configdeployer.vhosts: [{"hosts":["gw.example.com"],"name":"prod","type":"production"}]

  5. Install the Helm chart.

    To begin the installation, run the following command.

    helm install apk wso2apk/apk-helm --version 1.3.0-1 -f kg-values.yaml -n apk

    helm install <chart-name> <repository-name>/apk-helm --version <version-of-APK> -f <path-to-values.yaml-file> -n <namespace>

Set up WSO2 API Manager Control Plane

Follow the steps given below to set up WSO2 API Manager 4.5.0/4.6.0 in a Kubernetes cluster using Helm charts.

Important

If you need comprehensive documentation and configurations for the API Manager Helm chart, please refer to the APIM Helm documentation of the corresponding APIM version:

This guide focuses on a single deployment with the API Manager Control Plane.

  1. Create a new Helm repository with the latest APIM release using the following command. Let's consider the <repository-name> as wso2apim.

    console helm repo add wso2 https://helm.wso2.com

  2. Execute the following command to update the helm repositories.

    console helm repo update

  3. Download the values.yaml file relevant to your APIM version using the relevant command:

    console curl -o apim-values.yaml https://raw.githubusercontent.com/wso2/helm-apim/refs/heads/4.5.x/all-in-one/default_values.yaml

    console curl -o apim-values.yaml https://raw.githubusercontent.com/wso2/helm-apim/refs/heads/4.6.x/all-in-one/default_values.yaml

  4. To add Kubernetes Gateway as a gateway, add the following configurations to the apim-values.yaml downloaded from the above step.

    • Configure the supported gateway types in API Manager.

    yaml Configurations: gatewayType: "Regular,APK"

    yaml Configurations: gatewayType: "APK"

    • Configure the JWKS URL to point to the APIM service URL

      yaml oauth_config: ... oauth2JWKSUrl: "http://apim-wso2am-all-in-one-am-service-1:9763/oauth2/jwks"

    • Add the Kubernetes gateway environment to the environments list.

    ``` yaml gateway:

    -- Kubernetes Gateway environments

    environments:
- name: "Default_APK"
  type: "hybrid"
  gatewayType: "APK"
  provider: "wso2"
  displayInApiConsole: true
  description: "This is a kubernetes gateway that handles both production and sandbox token traffic."
  showAsTokenEndpointUrl: true
  httpHostname: "default.gw.wso2.com:9095"

    ```

    ``` yaml gateway:

    -- Kubernetes Gateway environments

    environments:
- name: "Default_APK"
  type: "hybrid"
  provider: "wso2"
  gatewayType: "APK"
  displayInApiConsole: true
  description: "This is a hybrid gateway that handles both production and sandbox token traffic."
  showAsTokenEndpointUrl: true
  serviceName: "wso2am-gateway-service"
  servicePort: 9443
  wsHostname: "websocket.wso2.com"
  httpHostname: "default.gw.wso2.com:9095"
  websubHostname: "websub.wso2.com"

    ```

    Parameter Description
    name Gateway name. This name is required in a later step to configure the Kubernetes Gateway Agent.
    type To handle both production and sandbox token traffic, set this to hybrid.
    gatewayType To identify as a Kubernetes Gateway, this type is required to be set as APK.
    provider Gateway provider.
    httpHostname This setting is critical for the control plane to locate the gateway listener.
    If you change the Gateway listener in the Kubernetes Gateway configuration, that change should be reflected here.
    The Gateway listener hostname must be configured as default.{gateway.listener.hostname}:9095, where default and 9095 are fixed values.

  5. Install the API Manager Control Plane.

    Consider apim as the <chart-name> for this guide. In the command,

    • For the --version parameter, use the version corresponding to the release from step 1.
    • Point to the relevant apim-values.yaml file you downloaded and edited in the previous steps.

    The deployment will take a few minutes to complete.

    helm install apim wso2/wso2am-all-in-one --version 4.5.0-1 -f apim-values.yaml -n apk

    helm install apim wso2/wso2am-all-in-one --version 4.6.0-1 -f apim-values.yaml -n apk

    helm install <chart-name> <repository-name>/wso2am-cp --version <version-of-APIM> -f <path-to-values.yaml-file>

  6. Install the NGINX Ingress Controller.

    Please refer to the NGINX Ingress Controller documentation for more information.

  7. To expose the APIM JWKS URL for API authentication and testing purposes, follow these commands:

    • Edit the APIM service named apim-wso2am-all-in-one-am-service-1 with the following command: console kubectl edit svc apim-wso2am-all-in-one-am-service-1 -n apk

    • Under the ports section, add the following content: ``` ports:

      • name: apim-jwks-port port: 9763 targetPort: 9763 protocol: TCP ```

Set up WSO2 Kubernetes Gateway Agent

Note

The Kubernetes Gateway Agent provides the connection between the APIM Control Plane and the Kubernetes Gateway.

  1. Create a new Helm repository with the latest Kubernetes Gateway Agent release using the following command. Let's consider the <repository-name> as wso2apkagent for this guide.

    console helm repo add wso2apkagent https://github.com/wso2/product-apim-tooling/releases/download/1.3.0

    console helm repo add wso2apkagent https://github.com/wso2/product-apim-tooling/releases/download/1.3.1-1

  2. Execute the following command to update the helm repositories.

    console helm repo update

  3. Download values.yaml File

    To obtain the values.yaml file, you can use the helm show values command. Replace <repository-name> with the actual repository name and <version-of-agent> with the desired version of the Kubernetes Gateway Agent. Run the following command:

    helm show values wso2apkagent/apim-apk-agent --version 1.3.0 > kg-agent-values.yaml

    helm show values wso2apkagent/apim-apk-agent --version 1.3.1-1 > kg-agent-values.yaml

    helm show values <repository-name>/apk-helm --version <version-of-APK> > kg-agent-values.yaml

  4. Configuration required to connect the Kubernetes Gateway Agent in kg-agent-values.yaml

    • Configure Control Plane (APIM) related configuration in the Kubernetes Gateway Agent

      yaml controlPlane: enabled: true serviceURL: https://apim-wso2am-all-in-one-am-service-1:9443/ username: admin password: admin environmentLabels: Default_APK skipSSLVerification: true eventListeningEndpoints: amqp://admin:admin@apim-wso2am-all-in-one-am-service-1:5672?retries='10'&connectdelay='30'

      yaml controlPlane: enabled: true serviceURL: https://apim-wso2am-all-in-one-am-service-1:9443/ username: admin password: admin environmentLabels: Default_APK skipSSLVerification: true eventListeningEndpoints: amqp://admin:admin@apim-wso2am-all-in-one-am-service-1:5672?retries='10'&connectdelay='30'

      Parameter Description
      serviceURL Service URL of the API Manager Control Plane.

      Format: {apimService}.{namespace}.svc.cluster.local

      You can retrieve the apimService name using kubectl get svc -n <namespace>
      environmentLabels Gateway environment label is the environment name that you define under the environments section in the API Manager values.yaml file, which sets up the Kubernetes Gateway. In this scenario, it's Default_APK.
      eventListeningEndpoints Event listening endpoint in the API Manager.
      Username and Password Admin credentials of the API Manager.

    • Configure data plane (Kubernetes Gateway) related configuration in the Kubernetes Gateway Agent

      yaml dataPlane: enabled: true k8ResourceEndpoint: https://apk-wso2-apk-config-ds-service:9443/api/configurator/apis/generate-k8s-resources namespace: apk

      Parameter Description
      k8ResourceEndpoint The service endpoint of the config deployer.
      Format: {configDeployerService}.{namespace}.svc.cluster.local:{port}/api/configurator/apis/.
      You can retrieve the configDeployerService name using kubectl get svc -n <namespace>
      namespace Namespace where the Kubernetes Gateway is deployed.

    • Change the mode of the agent configuration as shown below.

      yaml agent: mode: CPtoDP

  5. Install the Kubernetes Gateway Agent.

    Install the Kubernetes Gateway Agent components and start WSO2 API Platform For Kubernetes. Consider apk as the <chart-name> for this guide. - For the --version parameter, use the version corresponding to the release from step 1. - Point to the relevant kg-agent-values.yaml file you downloaded and edited in the previous steps.

    The deployment will take a few minutes to complete.

    helm install apim-apk-agent wso2apkagent/apim-apk-agent --version 1.3.0 -f kg-agent-values.yaml -n apk

    helm install apim-apk-agent wso2apkagent/apim-apk-agent --version 1.3.1-1 -f kg-agent-values.yaml -n apk

    helm install <chart-name> <repository-name>/apim-apk-agent --version <version-of-APK-Agent> -f <path-to-values.yaml-file>

Verify the Deployment

You can verify the deployment by executing the following command. Once completed, you will see the status of the pods as shown below.

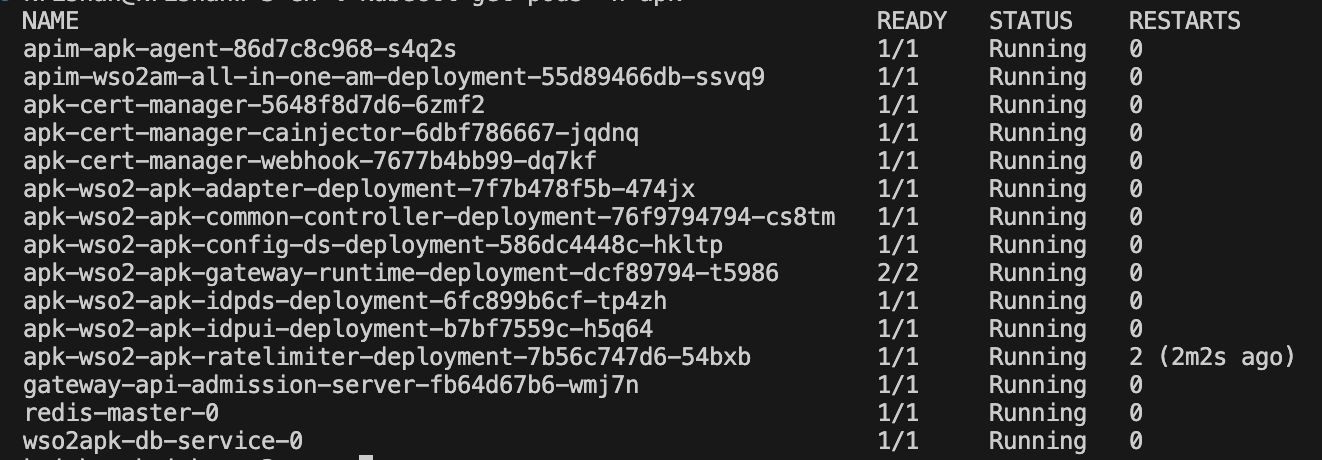

kubectl get pods -n apk

Pod Status

Configure the Hosts File

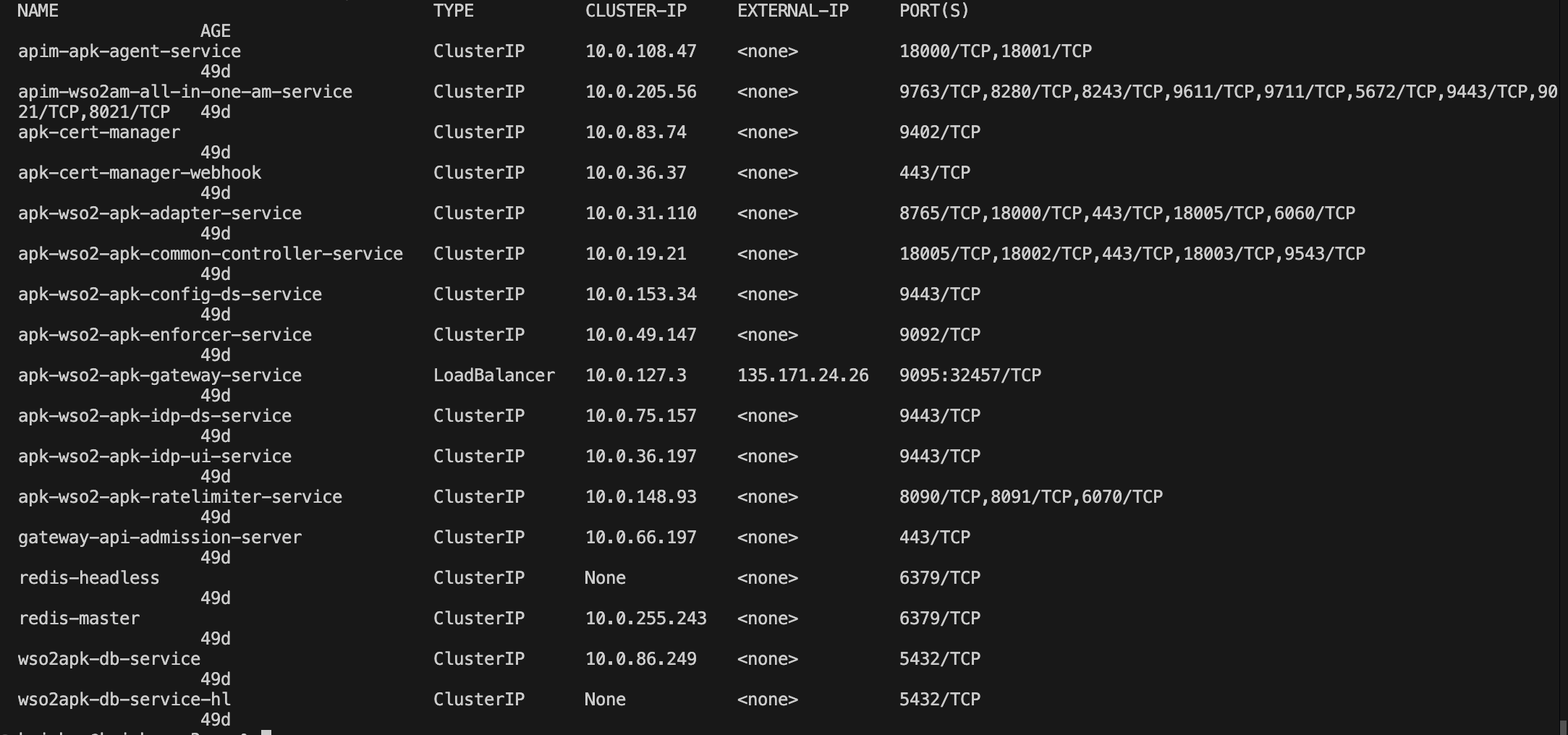

kubectl get svc -n apk Pod Status

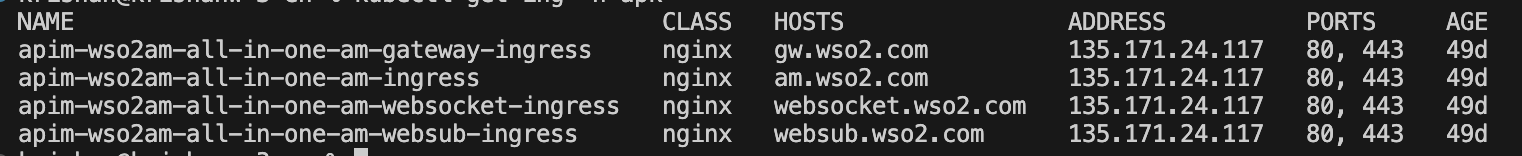

kubectl get ing -n apk

Pod Status

Add hostname mappings to the /etc/hosts file as follows:

Domain name IP
am.wso2.com (APIM Control Plane ingress hostname) 135.171.24.117 (As per above image). You can find it using kubectl get ing -n <namespace>
default.gw.wso2.com (This should be the same as the value you added for the Gateway Listener) 135.171.24.26 (As per above image). You can find it using kubectl get svc -n <namespace>
api.am.wso2.com (This should be the same as the value you added for the System APIs Listener) 135.171.24.26 (As per above image). You can find it using kubectl get svc -n <namespace>
idp.am.wso2.com (You don't need to change this) 135.171.24.26 (As per above image). You can find it using kubectl get svc -n <namespace>

Login to the Publisher Console (https://am.wso2.com/publisher) of the WSO2 API Manager.
